Microwave Door Switch WB24X829 WB24X10029 WB24X10047 WB24X10071 (Pack of 2)

---

Omron Switch Snap Action N.O. SPST Pin Plunger Quick Connect 16A 250VAC 250VDC 372.85VA 1.96N Screw Mount

New Frigidaire microwave micro door relay switch :

5304440026.

Also works with :

Frigidaire model FMV156DCC, CFMV156DBC, CFMV156DBD AND OTHERS.

Part Aliases :

366298 D3V16G3C25.

Description :

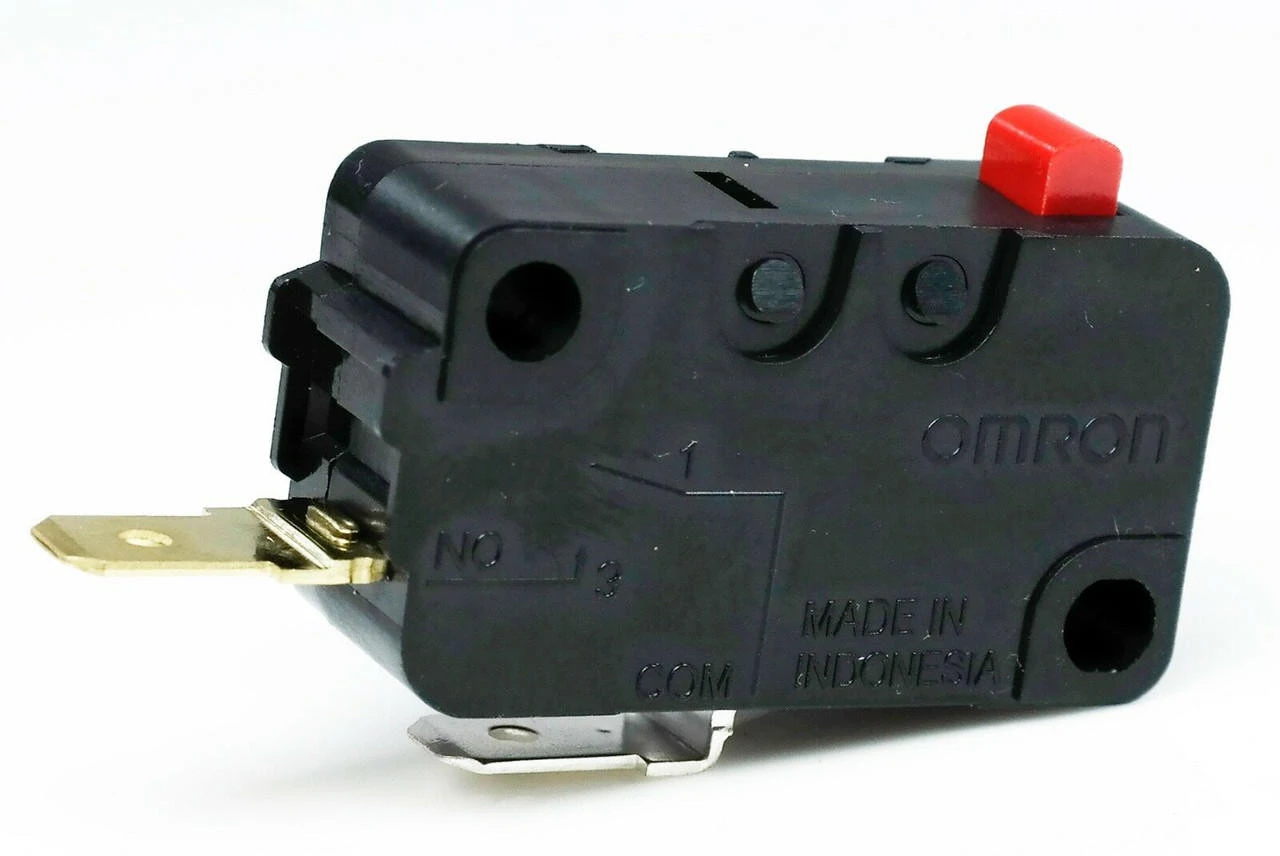

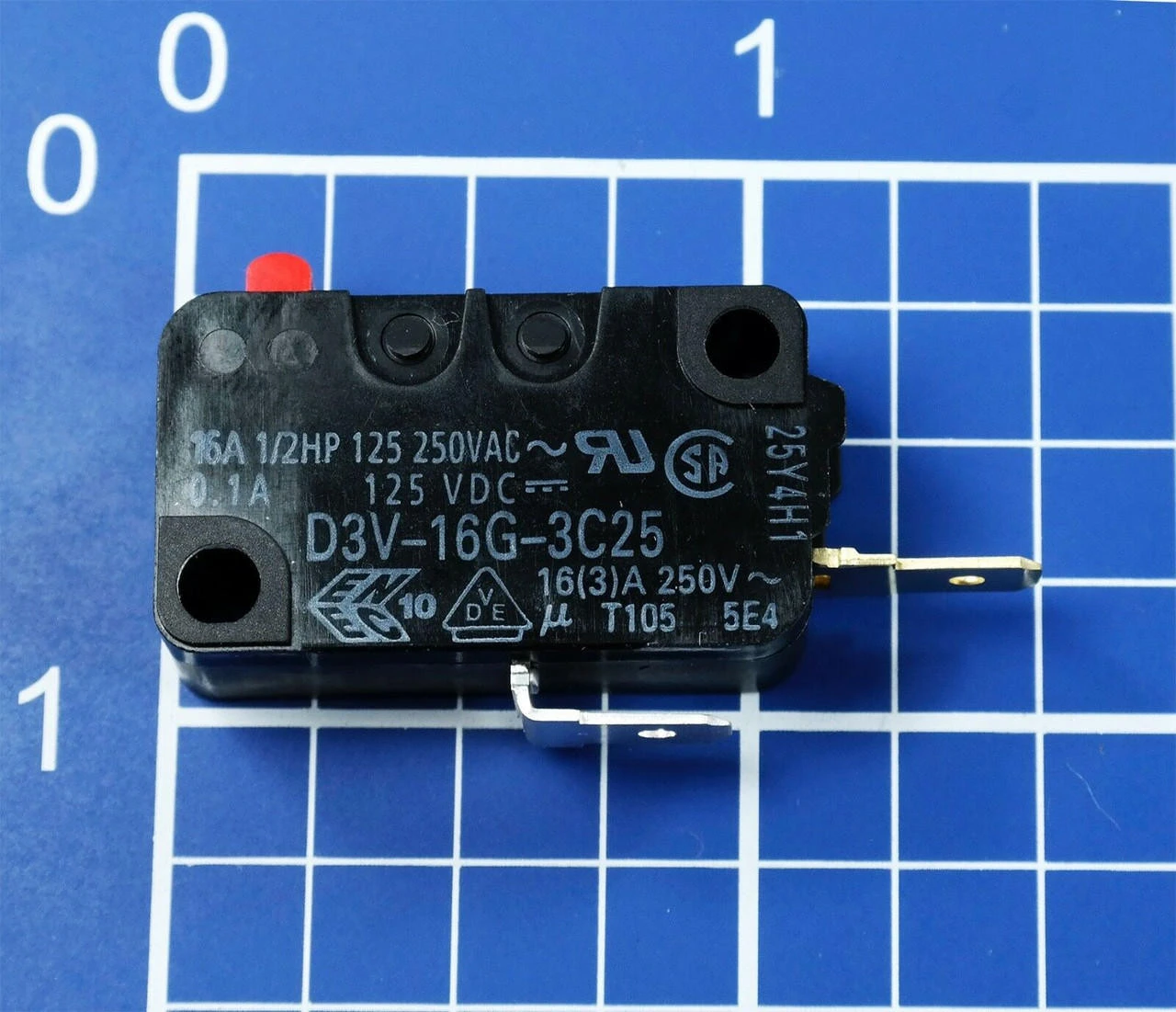

• The D3V-16G-3C25 snap-action switch from Omron makes opening or closing your circuit a fast operation.
• It has a SPST configuration. This device has a maximum current rating of 16 A @ 250VAC.
• This snap action switch has a minimum operating temperature of -25 °C and a maximum of 105 °C.
• The D3V-16G-3C25 snap action switch has a quick connect termination style.
• This product is 37.8 mm long, 21.6 mm tall and 10.3 mm deep.
• The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 250 VDC.

Replacement OEM Part :

It is compatible for the following models for 28QBP0497, D3V-16G-3C25, SZM-V16-FA63, WB24X10076, WB24X10038, WB24X801,WB24X796, WB24X5228, WB24X5227, WB24X445, WB24X441, WB24X439, WB24X429, WB24X426,WB24X414, WB24X401, WB24X384, WB24X368, WB24X3297, GSM-V1603A2, 75304440026, 5304467694, 5303319558, SZM-V16-FA63, W10269460, 61005520, 940337, 3405-001034, ANE61424L0AG, ANE6142-1450, 3405-000178, J61424T00AP, QSWMA085WREO, J61414T00AP, MOS0223K, QSWMA137WREO, R1491, ANE6142F60, NE9870, R1611, ANE6142F60, 46-692286-3, QSWMA11OWREO.
