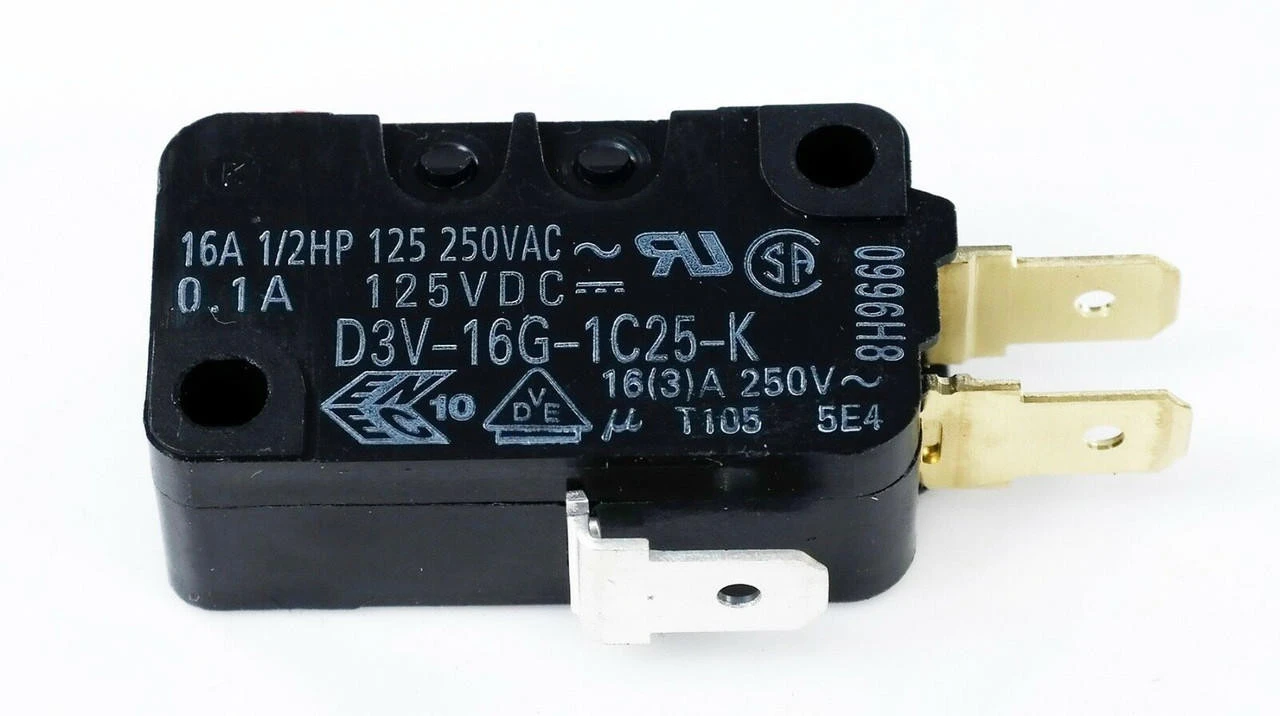

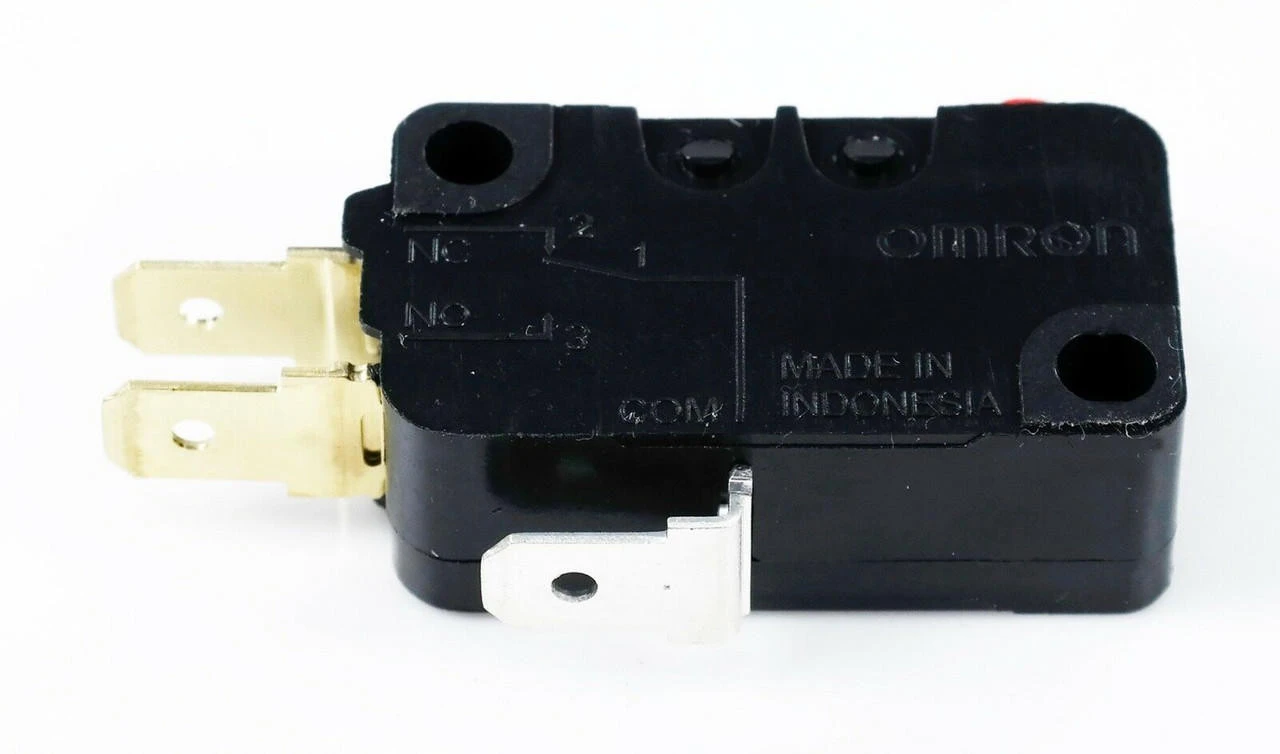

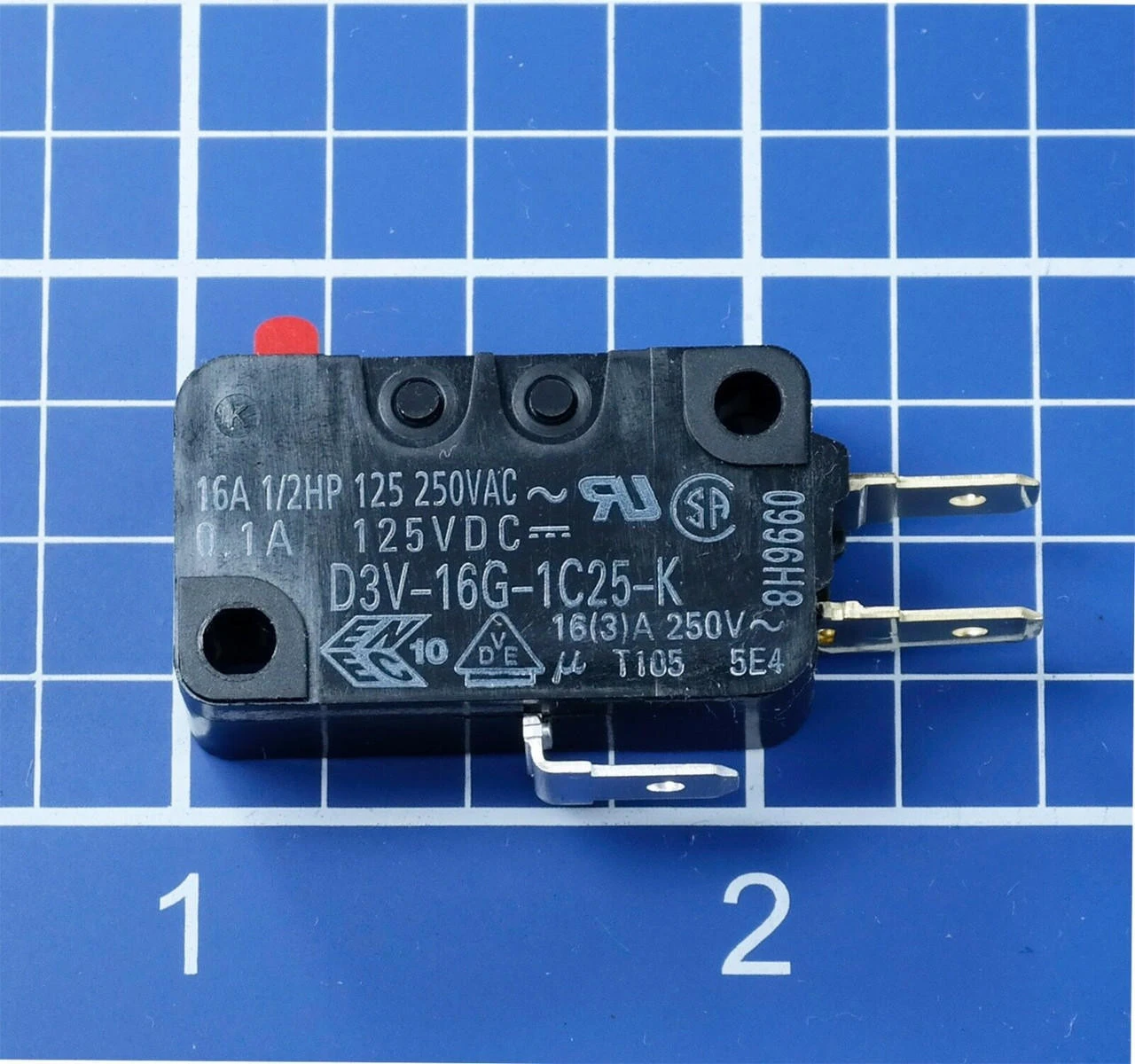

OMRON D3V-16G-1C25-K Microwave Switch 28QBP0495 4392027 WB24X10103 (Pack 2)

---

Omron Switch Snap Action N.O./N.C. SPDT Pin Plunger Quick Connect 16A 250VAC 250VDC 372.85VA 1.96N Screw Mount

Overview :

This D3V-16G-1C25-K snap-action switch from Omron can be actuated with very little physical force.

This device has a maximum current rating of 16 A @ 250VAC.

It has a SPDT configuration.

This snap action switch has an operating temperature range of -25 °C to 105 °C.

The D3V-16G-1C25-K snap action switch has a quick connect termination style.

The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 250 VDC.

This product is 37.8 mm long, 21.6 mm tall and 10.3 mm deep.

• Type : Miniature
• Contact Form : SPDT
• Switch Function : ON – (OFF), OFF – (ON)
• Actuator : Plunger, Pin
• Current Rating : 16 A
• Voltage Rating AC : 250 VAC
• Voltage Rating DC : 250 VDC
• Operating Force : 2 N
• Termination Style : Quick Connect
• Mounting : Panel IP Rating: IP40
• Packaging : Tray
• Operating Temperature Range : – 25 C to + 105 C

What’s Included :

• Qty 2 16A Micro Switch
• Manufacture by Omron

Replacement Part#:

• WB24X10103, 4392027, AMI0086, 28QBP0495, R9800417, R0802520, R0713539, R0654096, R0654095, R0131108, R0131267, 8184286, 8184285, 8183562, 8183561, 815120, 815117, 815115, 4392004.

Specification : Manufacturer Omron Electronics Inc-EMC Div Series DV3 Packaging Same Day Shipping Part Status Active Circuit SPDT Switch Function On-Mom Current Rating 16A (AC), 10A (DC) Voltage Rating – AC 250V Voltage Rating – DC 30V Actuator Type Round (Pin Plunger) Mounting Type Chassis Mount Termination Style Quick Connect – 0.187″ (4.7mm) Ingress Protection IP40 Features – Operating Force 200gf Release Force 50gf Pretravel 0.047″ (1.2mm) Differential Travel 0.012″ (0.3mm) Overtravel 0.040″ (1.0mm) Operating Temperature -25°C ~ 105°C Operating Position 0.579″ (14.7mm) Electrical Life 100,000 Cycles Mechanical Life 10,000,000 Cycles
